Thin Film Deposition: How Precision Coatings Improve Glass and Optical Surfaces
Modern glass and optical components often need to deliver more than transparency alone. They may need to resist scratching, survive repeated cleaning, maintain optical clarity, and perform reliably under demanding environmental conditions.
This is where thin film deposition becomes an important part of surface engineering.
Thin film deposition creates an extremely controlled layer of material on a substrate. Depending on the material and deposition method, the resulting film can provide mechanical protection, optical control, chemical resistance, electrical functionality, or decorative effects.
For glass, sapphire, optical windows, camera components, and electronic surfaces, the ability to precisely engineer the outermost layer can make a major difference in final product performance.
What Is Thin Film Deposition?
Thin film deposition is a manufacturing process used to create a thin layer of material on a solid substrate.
The deposited layer can range from extremely thin nanoscale films to thicker engineered coatings, depending on the application.
The substrate may be:
- Glass
- Sapphire
- Ceramic
- Metal
- Semiconductor material
- Polymer
- Other engineered materials
The purpose of the deposited film varies with the product.
A film can be designed to improve:
- Surface hardness
- Scratch resistance
- Abrasion resistance
- Optical transmission
- Reflection control
- Chemical resistance
- Electrical properties
- Surface appearance
Unlike a bulk material modification, thin film technology focuses on changing the properties of the surface while keeping the main characteristics of the underlying substrate.
Why Thin Films Matter in Modern Manufacturing
A product’s surface often experiences conditions that the interior never encounters.
For example, the outside of a smartphone component may be exposed to fingerprints, dust, keys, cleaning cloths, and repeated contact.
The inside of the component doesn’t experience these conditions.
Instead of changing the entire material, manufacturers can engineer only the surface.
This approach can provide a practical combination of:
Low Material Usage + Precise Performance + Controlled Surface Properties
That’s one of the major reasons thin-film technology has become so important in advanced manufacturing.
How Thin Film Deposition Works
Although deposition technologies vary, the basic concept is straightforward.
1. Substrate Preparation
The substrate is carefully cleaned before deposition.
Contamination such as dust, oils, and organic residues can interfere with film formation and adhesion.
2. Deposition Environment
Many advanced thin-film processes take place inside a controlled vacuum chamber.
The controlled environment reduces contamination and allows precise control over material transport.
3. Film Material Generation
The selected coating material is transformed into a vapor, plasma, or reactive species.
4. Material Transport
The material travels toward the substrate under controlled conditions.
5. Film Formation
The material accumulates on the substrate and forms a continuous thin layer.
6. Process Monitoring
Important parameters such as deposition rate, pressure, temperature, and film thickness may be monitored during production.
Major Thin Film Deposition Technologies
Several technologies can be used to create thin films.
Physical Vapor Deposition
Physical Vapor Deposition, or PVD, uses physical processes to transfer material from a source to a substrate.
It is widely used for hard, wear-resistant, decorative, and optical films.
Chemical Vapor Deposition
Chemical Vapor Deposition, or CVD, forms a film through chemical reactions involving gaseous precursors.
It is used extensively in semiconductor, optical, ceramic, and industrial applications.
Sputter Deposition
Sputtering removes material from a target using energetic particles and deposits it onto the substrate.
It is useful when highly controlled and uniform films are required.
Evaporation
Evaporation heats a source material until it becomes vapor, allowing the material to condense onto the substrate.
Different evaporation methods can be selected according to film and substrate requirements.
Thin Film Deposition for Glass
Glass is an important substrate for thin-film technology.
Its transparency makes it useful for:
- Smartphone cover glass
- Camera components
- Optical windows
- Displays
- Sensors
- Automotive optical systems
- Industrial viewing components
However, transparent substrates require careful coating design.
The deposited film must provide the required functional properties without creating unacceptable haze, color shift, or optical distortion.
High-Hardness Thin Films
One of the most important applications of thin-film deposition is surface hardening.
A hard thin film can provide additional protection against mechanical contact while the underlying material retains its original properties.
Potential benefits include:
- Better scratch resistance
- Improved abrasion resistance
- Higher surface durability
- Reduced surface wear
However, hardness should not be considered in isolation.
The coating must also have sufficient adhesion and appropriate mechanical characteristics to survive the intended environment.
Thin Film Deposition for Sapphire Applications
Sapphire is naturally known for its high hardness and excellent optical characteristics.
Because of these properties, sapphire is widely considered for applications where transparent surfaces must withstand demanding conditions.
Thin-film deposition can add further functionality to sapphire and other hard transparent substrates.
Depending on the coating system, engineers can use deposited films to modify surface characteristics while preserving the important properties of the substrate.
SRNC’s Sapphire Super Hard Coating is relevant to applications requiring high-performance surface protection and enhanced hardness.
Optical Thin Film Deposition
Not every thin film is designed primarily for mechanical protection.
Optical thin films are engineered to control how light interacts with a surface.
They can be designed for:
- Anti-reflection
- High reflection
- Specific transmission bands
- Reflection filtering
- Optical protection
The film’s thickness, refractive index, and layer structure all influence optical behavior.
For precision optical components, even small variations in film thickness can affect performance.
Multilayer Thin Films
A single film isn’t always enough to achieve the required performance.
Multilayer structures use several thin layers with different properties.
A multilayer system can be designed to combine:
- Mechanical protection
- Optical control
- Chemical stability
- Adhesion
- Surface functionality
This approach provides engineers with much more control than a single-layer coating.
For example, different layers can perform different jobs within the same coating stack.
Thin Film Thickness Control
Thickness is one of the most important parameters in thin-film manufacturing.
The required thickness depends on the application.
For mechanical coatings, thickness can influence hardness, wear resistance, and durability.
For optical coatings, thickness can directly influence reflection and transmission.
Inconsistent film thickness can lead to:
- Uneven appearance
- Variable optical performance
- Inconsistent hardness
- Different surface behavior across the component
Precise process monitoring is therefore essential.
Adhesion Between Thin Film and Substrate
A thin film can only provide reliable protection when it remains firmly attached to the substrate.
Poor adhesion may cause:
- Peeling
- Cracking
- Delamination
- Localized coating failure
Surface preparation plays a major role in adhesion.
The interface between film and substrate can also be engineered through pretreatment or intermediate layers.
For demanding applications, adhesion should be evaluated under both mechanical and environmental conditions.
Surface Preparation Before Deposition
Before deposition, substrates are normally subjected to carefully controlled preparation.
The process may include:
- Cleaning
- Degreasing
- Drying
- Surface activation
- Plasma treatment
- Final inspection
The exact process depends on the substrate and coating technology.
For optical glass and sapphire, surface cleanliness is especially important because even small particles can become visible defects.
Thin Film Deposition and Optical Clarity
Transparent coatings must meet stricter requirements than many opaque coatings.
A coating may have excellent mechanical properties but still be unsuitable for an optical application if it introduces too much scattering or reflection.
Important parameters include:
- Transmission
- Haze
- Reflection
- Color
- Uniformity
For camera and optical components, these properties can directly affect image quality.
Therefore, mechanical performance and optical performance need to be evaluated together.
Chemical and Environmental Resistance
Thin films can also provide protection from environmental exposure.
Depending on the material system, a coating may improve resistance to:
- Moisture
- Oils
- Cleaning agents
- Alcohol
- Sweat
- Temperature changes
For consumer electronics, repeated cleaning and contact with skin oils can be particularly important.
For industrial components, the chemical environment may be considerably more aggressive.

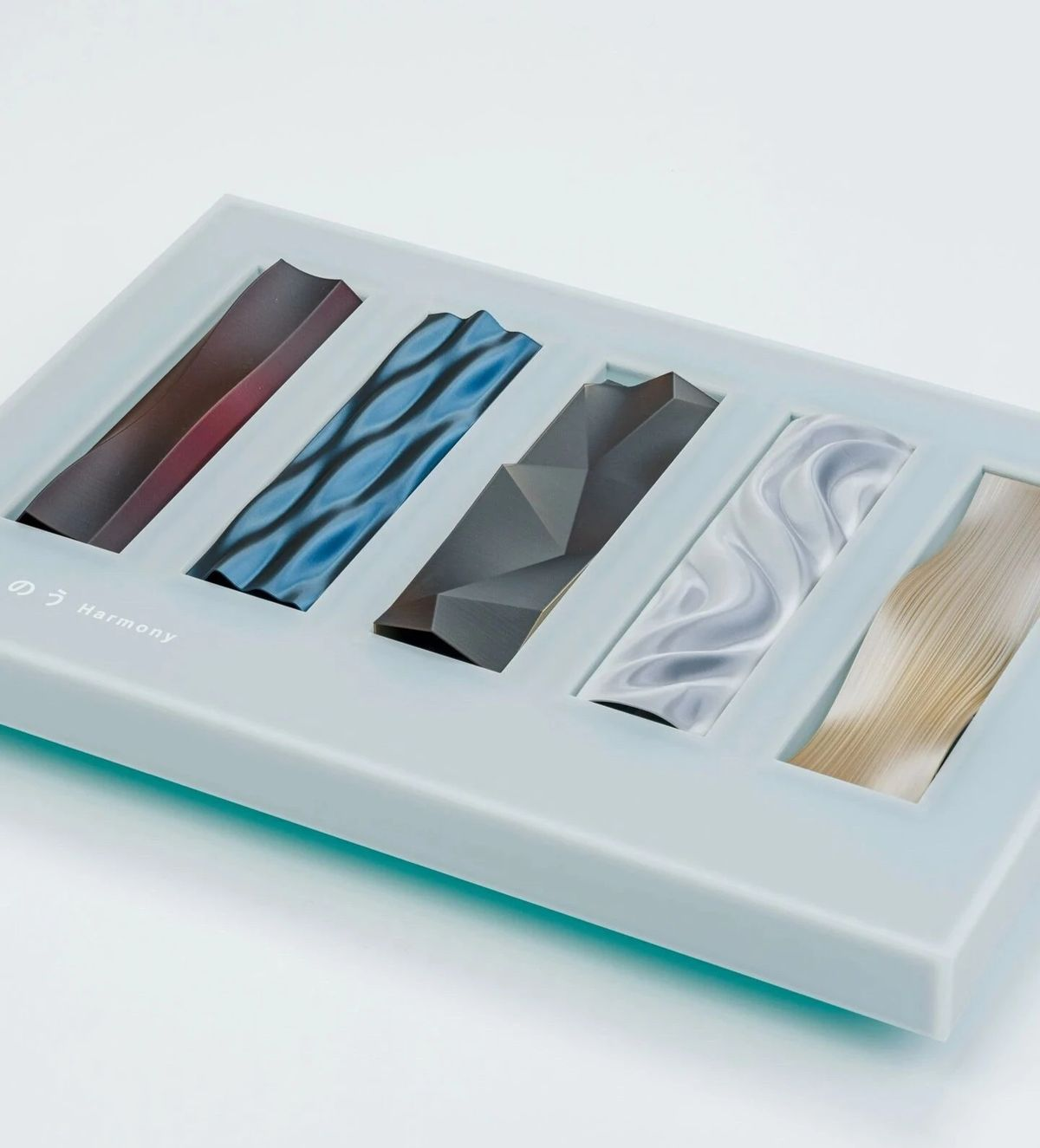

Thin Film Deposition for Decorative Surfaces
Thin-film technology isn’t limited to invisible functional layers.
It can also be used to create controlled visual effects.
Depending on the coating structure, manufacturers can achieve:
- Metallic colors
- Decorative finishes
- Controlled gloss
- Color effects
- Premium surface appearances
This is particularly useful in consumer electronics and other products where visual design is closely connected with perceived quality.
Quality Control in Thin Film Manufacturing
A reliable thin-film process requires consistent process control.
Important inspection areas can include:
| Parameter | Why It Matters |
|---|---|
| Film thickness | Controls coating consistency |
| Adhesion | Prevents delamination |
| Hardness | Determines mechanical protection |
| Abrasion resistance | Measures wear performance |
| Optical transmission | Confirms transparency |
| Haze | Controls visual clarity |
| Surface defects | Maintains cosmetic quality |
| Chemical resistance | Evaluates environmental durability |
The specific testing program should be based on the final application.
Thin Film Deposition vs. Traditional Coating
Traditional liquid coatings and thin-film deposition both have useful applications.
| Characteristic | Thin Film Deposition | Traditional Liquid Coating |
|---|---|---|
| Film control | Highly controlled | Depends on application method |
| Process environment | Often vacuum-based | Usually atmospheric |
| Film thickness | Can be very thin | Often comparatively thicker |
| Optical applications | Highly suitable | Depends on formulation |
| Material efficiency | Can be high | Depends on process |
| Decorative applications | Yes | Yes |
Neither technology is universally better.
The right choice depends on substrate, performance requirements, production volume, cost, and final product specifications.
How to Choose a Thin Film Deposition Process
Manufacturers should evaluate several factors before selecting a deposition technology.
Substrate Compatibility
Determine how the substrate responds to vacuum, temperature, plasma, and deposition conditions.
Required Film Properties
Define the required hardness, optical behavior, chemical resistance, or other functions.
Film Thickness
Determine the thickness range needed for the application.
Adhesion
Evaluate the expected mechanical and environmental loads.
Production Scale
The process should be capable of delivering consistent quality at the required production volume.
Optical Requirements
Transparent applications need additional control over transmission, haze, reflection, and color.
Frequently Asked Questions
What is thin film deposition?
Thin film deposition is a manufacturing process used to create a thin layer of material on a substrate. It can be used to modify mechanical, optical, chemical, electrical, or decorative surface properties.
What materials can be coated using thin film deposition?
Depending on the deposition technology, substrates can include glass, sapphire, metals, ceramics, polymers, and semiconductor materials.
Is thin film deposition the same as PVD?
No. PVD is one category of thin-film deposition technology. Thin film deposition is a broader term that includes PVD, CVD, sputtering, evaporation, and other methods.
Can thin film deposition improve glass hardness?
Certain deposited hard films can improve the surface hardness and wear resistance of glass, depending on the coating material and interface structure.
Can thin films remain transparent?
Yes. Thin films can be engineered for transparent applications, including optical glass, camera components, and protective windows.
Why is film thickness important?
Film thickness affects mechanical properties, optical behavior, stress, adhesion, and overall coating performance. Precise control is therefore essential.
Can thin film deposition create multilayer coatings?
Yes. Multiple thin layers can be deposited to combine different functions, such as optical control, hardness, adhesion, and environmental protection.
How is thin film quality tested?
Testing can include film thickness, adhesion, hardness, abrasion resistance, optical transmission, haze, chemical resistance, and environmental aging.
What is the advantage of thin films over bulk materials?
Thin films allow manufacturers to modify surface properties without changing the entire substrate. This can provide targeted functionality while preserving the substrate’s structural or optical characteristics.
Conclusion
Surface engineering has moved far beyond simply adding a protective layer.
Thin film deposition provides manufacturers with a precise way to engineer surfaces at a very small scale, creating coatings that can combine hardness, wear resistance, optical performance, chemical stability, and controlled appearance.
For glass, sapphire, and optical components, this precision is particularly valuable. The coating must not only protect the substrate but also maintain the characteristics that make the substrate useful in the first place.
SRNC’s Sapphire Super Hard Coating is relevant to high-hardness surface applications where advanced protection and durability are required.
A successful thin-film solution ultimately comes from balancing deposition technology, film material, thickness, substrate preparation, adhesion, optical properties, and real-world durability rather than focusing on any single specification.
