Magnetron Sputtering: 9 Engineering Factors Behind Reliable Thin Film Coatings
A coating may be only a few micrometers or even nanometers thick, yet it can have a major influence on how a component performs.
Surface hardness, wear resistance, optical transmission, reflection, chemical stability, and appearance can all be modified through carefully engineered thin films.
One of the important technologies used to produce these films is magnetron sputtering.
Magnetron sputtering is a physical vapor deposition technique that uses a plasma to remove atoms from a solid target and deposit them onto a substrate. By controlling the process conditions, manufacturers can create thin films with carefully defined thickness, composition, and surface properties.
The technology is used across optical components, electronics, displays, decorative products, semiconductor equipment, and advanced protective coatings.
For glass and sapphire-related applications, its ability to create controlled thin films makes it particularly interesting for surface engineering.
What Is Magnetron Sputtering?
Magnetron sputtering is a vacuum-based thin-film deposition process.
During the process, a solid material called the target is placed inside a vacuum chamber. A plasma is generated near the target, and energetic ions strike its surface.
These impacts eject atoms from the target.
The released atoms then travel through the chamber and deposit onto the substrate, gradually forming a thin film.
A magnetic field is used to help confine electrons near the target surface. This increases plasma efficiency and allows stable deposition at relatively low pressures.
In simple terms:
Plasma + Magnetic Field + Target Material + Controlled Vacuum = Thin Film
The result is a highly controllable coating process suitable for many advanced applications.
Why Magnetron Sputtering Is Important
The quality of a thin film depends on much more than the material itself.
Manufacturers need to control:
- Film thickness
- Deposition rate
- Composition
- Surface uniformity
- Adhesion
- Film density
- Internal stress
Magnetron sputtering offers a practical way to control these factors.
It can deposit a wide range of materials and can be adapted for different substrate types and coating structures.
This flexibility makes it useful for both functional and decorative applications.
How Magnetron Sputtering Works
The basic process can be divided into several stages.
1. Substrate Loading
The glass, sapphire, metal, ceramic, or other substrate is placed inside the vacuum chamber.
2. Vacuum Creation
The chamber is evacuated to create the required low-pressure environment.
This helps reduce contamination and allows the plasma to operate under controlled conditions.
3. Plasma Generation
A working gas, commonly an inert gas such as argon, is introduced.
An electrical field creates a plasma containing charged particles.
4. Ion Bombardment
Positive ions are accelerated toward the negatively biased target.
The impact releases atoms from the target surface.
5. Film Deposition
The released atoms travel toward the substrate and form a thin coating.
6. Process Monitoring
Deposition parameters are monitored to achieve the desired film thickness and properties.
The Role of the Magnetron
The magnetic field is what distinguishes magnetron sputtering from simpler sputtering configurations.
Magnets are positioned behind the target.
They create a magnetic field that traps electrons close to the target surface.
This increases the probability that electrons will collide with gas atoms and generate additional ions.
The result is a more efficient plasma.
This can provide:
- Higher deposition rates
- Better process stability
- Lower operating pressure
- More efficient use of the target material
- Improved process control
9 Engineering Factors Behind Magnetron Sputtering Performance
1. Target Material
The target determines the primary material deposited onto the substrate.
Target materials can include various:
- Metals
- Oxides
- Nitrides
- Carbides
- Other functional materials
Material selection depends on the required coating properties.
2. Working Gas
The working gas affects plasma behavior and deposition conditions.
Argon is commonly used because it is chemically inert and effective for generating the sputtering plasma.
Reactive gases can also be introduced when the desired film requires chemical reactions during deposition.
3. Power
The power supplied to the target influences plasma intensity and deposition rate.
Too little power may reduce productivity.
Excessive power can increase thermal load or affect film quality.
4. Pressure
Chamber pressure influences the movement and energy of sputtered atoms.
Pressure changes can affect:
- Film density
- Deposition rate
- Surface morphology
- Stress
- Uniformity
5. Substrate Temperature
Temperature can influence how atoms move across the growing film.
Depending on the material system, temperature may affect film structure, adhesion, density, and residual stress.
6. Substrate Bias
Applying a controlled electrical bias to the substrate can influence ion bombardment during deposition.
This can affect film density and interface properties.
7. Deposition Rate
The deposition rate needs to be controlled according to the coating specification.
A stable rate helps maintain consistent thickness and composition.
8. Film Thickness
Thickness affects mechanical and optical performance.
For optical films, small thickness changes can significantly alter reflection and transmission.
For protective films, thickness can influence durability and stress.
9. Surface Preparation
A clean substrate is essential for good adhesion and consistent film growth.
Surface contamination can create defects or weak interfaces.
Magnetron Sputtering for Hard Coatings
Magnetron sputtering can be used to deposit hard and wear-resistant films.
These coatings may be designed to improve:
- Surface hardness
- Scratch resistance
- Abrasion resistance
- Wear resistance
- Chemical durability
The final performance depends on the coating material and microstructure.
A hard coating isn’t automatically a durable coating. Adhesion, toughness, residual stress, and substrate properties all matter.
Magnetron Sputtering for Glass
Glass is an important substrate for sputtered thin films.
Applications can include:
- Display glass
- Smartphone cover glass
- Camera cover glass
- Optical windows
- Sensor windows
- Automotive glass
- Decorative glass
The challenge is maintaining the desired appearance and optical performance while adding the required surface functionality.

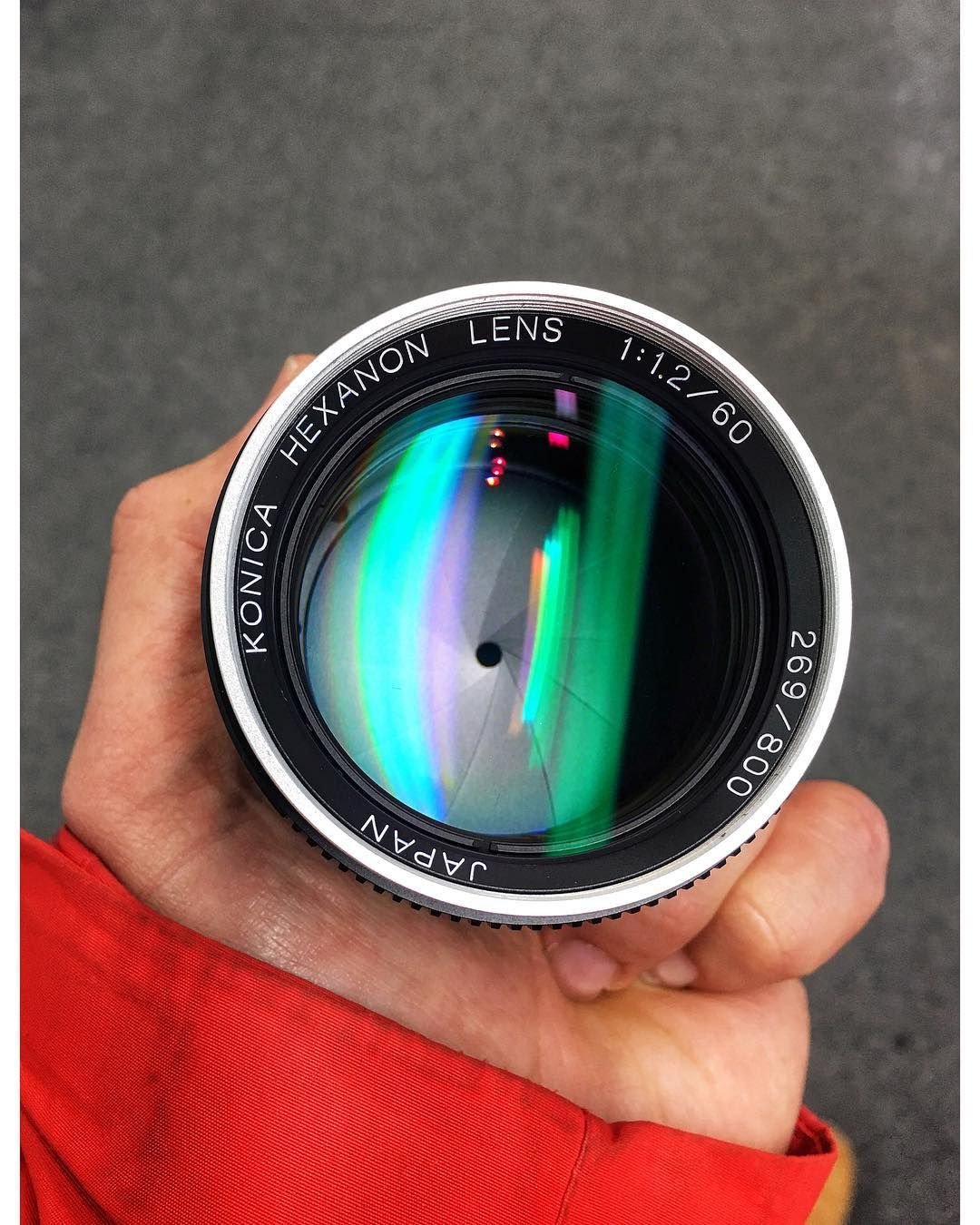

Optical Applications
Optical coatings require especially precise control.
A sputtered film can be engineered to modify the interaction between light and the surface.
Possible functions include:
- Anti-reflection
- High reflection
- Selective transmission
- Filtering
- Surface protection
Film thickness and refractive index are important parameters.
For multilayer optical structures, several materials can be deposited sequentially to achieve a specific spectral response.
Magnetron Sputtering and Sapphire
Sapphire is valued for its combination of hardness, transparency, and chemical stability.
Its surface properties make it suitable for demanding optical and protective applications.
Magnetron sputtering can be considered when additional functional films need to be deposited onto sapphire or other hard transparent substrates.
For high-hardness applications, SRNC’s Sapphire Super Hard Coating provides a relevant example of advanced surface protection technology.
The actual coating process should be selected based on the substrate, film chemistry, optical requirements, and mechanical performance targets.
Multilayer Coatings
One of the strengths of sputtering technology is its suitability for multilayer structures.
Different layers can be deposited sequentially.
For example, a coating stack might be designed with separate functions for:
- Adhesion
- Mechanical protection
- Optical control
- Environmental resistance
This allows engineers to optimize the entire coating system rather than relying on one material to perform every function.
Adhesion and Interface Engineering
Strong adhesion is essential for a durable sputtered coating.
The interface can be affected by:
- Surface contamination
- Substrate chemistry
- Ion bombardment
- Pretreatment
- Deposition temperature
- Film stress
A well-prepared substrate provides a better foundation for film growth.
For demanding applications, adhesion should be tested after environmental aging rather than only immediately after deposition.
Thickness Uniformity
Uniformity becomes increasingly important as component size grows.
Uneven film thickness can create variations in:
- Color
- Hardness
- Reflection
- Transmission
- Surface appearance
Magnetron configuration, substrate movement, target geometry, and process parameters can all influence uniformity.
Production systems therefore need careful equipment and process design.
Reactive Magnetron Sputtering
Reactive sputtering expands the range of materials that can be deposited.
Instead of sputtering only the target material, a reactive gas can participate in the film-forming process.
For example, oxygen or nitrogen may be introduced to create oxide or nitride films.
This provides access to a wider range of functional coatings.
However, reactive sputtering requires careful control because changes in gas composition can affect deposition stability and film properties.
Magnetron Sputtering vs. Other Deposition Methods
Different deposition technologies serve different purposes.
| Technology | Typical Strength |
|---|---|
| Magnetron sputtering | Precise thin-film deposition and multilayer structures |
| Evaporation | Efficient deposition for selected materials |
| CVD | Chemical formation of films from gaseous precursors |
| Ion-assisted deposition | Enhanced film density and interface control |
| Liquid coating | Flexible application for many conventional surfaces |
The best technology depends on substrate compatibility, film requirements, production conditions, and cost.
Testing Magnetron-Sputtered Coatings
A coating should be evaluated according to its intended use.
| Test | Purpose |
|---|---|
| Hardness | Measures surface mechanical resistance |
| Scratch test | Evaluates localized surface damage |
| Abrasion test | Measures wear resistance |
| Adhesion test | Evaluates film-to-substrate bonding |
| Thickness measurement | Confirms coating consistency |
| Optical transmission | Evaluates transparent applications |
| Haze measurement | Checks optical clarity |
| Chemical resistance | Measures stability against chemicals |
| Environmental aging | Evaluates long-term performance |
For optical components, mechanical and optical tests should be performed together.
Advantages of Magnetron Sputtering
Magnetron sputtering offers several useful advantages:
- Precise film thickness control
- Good coating uniformity
- Wide material selection
- Suitability for multilayer films
- High-quality thin-film structures
- Good process repeatability
- Compatibility with many functional coatings
These characteristics make it valuable for both research and industrial-scale coating production.
Frequently Asked Questions
What is magnetron sputtering?
Magnetron sputtering is a vacuum-based physical vapor deposition process that uses plasma and a magnetic field to eject atoms from a target and deposit them onto a substrate.
What materials can be deposited by magnetron sputtering?
A wide range of metals, oxides, nitrides, carbides, and other materials can be deposited, depending on the sputtering system and process configuration.
Can magnetron sputtering coat glass?
Yes. Magnetron sputtering is widely used for depositing functional and optical films on glass.
Can magnetron sputtering be used on sapphire?
Suitable sputtering processes can be developed for sapphire and other hard substrates. Surface preparation and process parameters need to be optimized for strong adhesion.
Does magnetron sputtering create hard coatings?
Yes. Suitable materials and process conditions can produce hard and wear-resistant films.
What is reactive magnetron sputtering?
Reactive magnetron sputtering introduces a reactive gas into the deposition environment so that the sputtered material can form compounds such as oxides or nitrides.
Why is a magnetic field used?
The magnetic field confines electrons near the target, improving plasma generation and allowing efficient sputtering at controlled pressures.
What affects sputtered film quality?
Important factors include target material, power, pressure, gas composition, substrate temperature, substrate bias, deposition rate, surface preparation, and film thickness.
Is magnetron sputtering suitable for optical coatings?
Yes. Its ability to precisely control thin films makes it suitable for many optical coating applications, including reflection control and protective optical layers.
Conclusion
A high-performance coating starts with a controlled deposition process.
Magnetron sputtering provides manufacturers with a versatile way to create precise thin films with controlled thickness, composition, uniformity, and surface properties.
From hard protective films to optical multilayers, the technology can be adapted to demanding applications involving glass, sapphire, metals, ceramics, and other advanced substrates.
For applications requiring enhanced surface hardness and durability, SRNC’s Sapphire Super Hard Coating is a relevant solution to consider.
The key to successful sputtering isn’t simply selecting a powerful deposition system. It lies in controlling the complete process—from substrate preparation and plasma conditions to film structure, adhesion, thickness, and final performance testing.
